Laserlasgordijnen spelen een cruciale rol bij het creëren van een veilige werkomgeving bij het gebruik van lasers voor lassen of lasers voor andere toepassingen. Laserlasgordijnen zijn ontworpen om de laserstraling te blokkeren of te verzwakken, waardoor wordt voorkomen dat deze uit het aangewezen werkgebied ontsnapt en het risico op accidentele blootstelling van personeel wordt verminderd. Ze vormen een belangrijk onderdeel van een algemeen laserveiligheidsprogramma, dat de juiste training, het gebruik van persoonlijke beschermingsmiddelen (zoals een veiligheidsbril voor laserlassen) en het naleven van vastgestelde veiligheidsprotocollen omvat.

Grootte en configuratie:

Laserlasgordijnen zijn verkrijgbaar in verschillende maten en configuraties, zodat ze geschikt zijn voor verschillende werkgebieden en toepassingen. Ze kunnen aan plafondrails worden gehangen of op frames worden gemonteerd om een ​​beschermende barrière rond het laserlasstation te creëren.

Onze laserlaspanelen kunnen op wielen aan elkaar worden gekoppeld, zodat u de panelen kunt verplaatsen wanneer u dat wilt. De panelen zijn verbonden door verdelers van één voet en anderhalve voet, zodat u indien nodig hoeken en vouwen kunt creëren. De paneelsystemen kunnen op een vergelijkbare manier werken als een douchegordijn, met als extra eigenschap dat ze mobiel zijn.

Voordat u laserlasgordijnen, -panelen of -barrières implementeert, is het belangrijk om een ​​veiligheidsexpert op het gebied van laserlassen te raadplegen en de richtlijnen van de regelgevende instanties te volgen om ervoor te zorgen dat de gordijnen en barrières de risico's die gepaard gaan met laserstraling effectief beperken en dat lassers naar het betreffende gebied flitsen.

Laserlassen Laserbeheersing!

Lasergordijnen - Vrijstaande laserbarrières - Draagbare laserbarrières - Laserlasschermen - Laserbehuizingen

Onze metalen laserlasveiligheidsgordijnen zijn gebouwd volgens strenge specificaties met duurzame componenten voor jarenlange service.

Onze laserveiligheidsgordijnen worden vervaardigd volgens aangepaste specificaties en passen in elke ruimte in uw omgeving.

Lasermach rust op maat gemaakte gordijnen en beschermhoezen, afhankelijk van de toepassing, volgens klantspecificatie uit met klittenbandsluitingen, ringen en/of oogjes.

De veiligheidsgordijnen schermen de medewerkers buiten de cabine betrouwbaar af: er ontsnapt geen straling naar buiten. Belangrijk! Reflecties moeten worden vermeden! Lasermach vervaardigt laserlasbeschermhoezen precies volgens de eisen van de klant. Hierdoor worden slangen, elektriciteitskabels, afzuigsystemen en dergelijke beschermd tegen laserstraling.

Laser Safety Curtain

Laser safety Weld-Curtain - Laser protection welding curtain

The laser safety Welding curtain is suitable for delimiting laser welding areas to block direct scattered light from the welding laser.

Standard widths to 1,5 m with heights of 2,0m 2,2m 2,70 m Can be manufactured to exact dimensions.
Several curtains can be firmly connected with Velcro or zipper so that, for example, a rectangular work area can be delimited. Suitable rail systems for mounting the curtain directly to the ceiling or suspended from a high ceiling with vertical rods are optionally available.

  • CE certified according to the standard EN 60825-4
  • Flame retardant (M2 protection level to NFP 92-503)
  • Material: Both sides black
  • Thickness 1.4 mm
  • Curtain weight: 1.7 kg/m²
  • Surface easy to clean
  • Eyelets (diameter 10 mm, standard spacing 230/240 mm) and metal hooks on the top edge
  • Matching curtain track or frame available
  • Attachment of additional screens possible (to cover the gap between the rail and the upper edge of the curtain)
  • Attachment of Velcro or zipper possible
  • Connection with interlock system possible (optional)
  • Possibility of building in protection Windows

Please note that the curtain material only protects shortly against direct laser light from laser welding and is intended for stray light from the laser when using a hand-held laser welding device. It is necessary for the laser protection officer in your company to confirm as part of a risk assessment that the maximum permissible radiation levels of the curtain are not being reached or exceeded. Scattered radiation, which can escape upwards, downwards or sideways, must be evaluated by the laser safety officer with regard to maximum permissible radiation levels depending on the on-site situation. Additional laser protection measures may be required.

Welk laserlasveiligheidsgordijn kan worden gebruikt voor laserlassen?

Welke laserbeschermingsnorm wordt geaccepteerd voor handlaserlassen?

IEC 60825-4

is de enige geaccepteerde standaard voor laserlasbeschermingsgordijnen

⇑ ⇓ ⇑ ⇓

DIN EN 12254:2012-04

Deze norm EN 12254 is van toepassing op bewaakte schermen voor installaties op werkplekken waar laserstraling tot een maximaal gemiddeld vermogen van 100 W of een enkele pulsenergie van 30 J aanwezig is. Simpelweg: bescherming voor testlaboratoria met laag laservermogen



DIN EN 12254:2012-04 is dus geen geldige norm voor laserlassen

Laserlasbeschermende behuizingen - Laserlasgordijnen - Laserlasschermen - Laserlascabines - Laserlasramen

De nieuwste generatie draagbare laserlasapparaten en reinigingssystemen zijn snel, eenvoudig te bedienen en produceren consistente lassen van hoge kwaliteit in een reeks verschillende materialen en diktes. U mag echter de vereiste veiligheids- en persoonlijke beschermingsmaatregelen niet over het hoofd zien.



Wanneer u een klasse 4-laserlasapparaat gebruikt, is het absoluut noodzakelijk

dat u een geschikte klasse 4-behuizing gebruikt.

Lasermach heeft een standaard “plug and play”-assortiment ontworpen dat deze veilige werkomgeving biedt:

PhotonSafe®-serie - Laserveiligheidsgordijnen

PhotonSafe® Laser Protection-gordijnen zijn voorzien van een hoogwaardige bescherming tegen laserstraling en voldoen aan de laserveiligheidseisen van klasse 4 laser.

Lasersafe®-laserbeschermingsgordijnen zijn getest volgens de laserveiligheidsnormen IEC 60825, EN60825 en GB 7247. Bovendien zijn ze conform de CMA en CNAS, een accreditatiesysteem dat is geïntegreerd voor internationale wederzijdse erkenning, in overeenstemming met de CE-normen en voldoen ze aan de drempel van de Europese markt.

Op grote schaal toegepast in laserbewerking, militaire industrie, laserlassen, laserreiniging, lasercladding, gerobotiseerd laserlassen, wordt LaserSafe® zeer gewaardeerd door zijn gebruikers.

Standard Laser Safety Curtain on aluminium wheeled rack

Single, mobile laser safety screen in a metal frame – fitted with heavy duty laser safety curtain

Standard and Custom Curtain Solutions

Our standard laser safety curtains are the best solution for immediate laser protection. Standard sizes can be pieced together for larger coverage. Easily connect multiple curtains together to build a curtain that fits your needs. For more elaborate protection, design custom curtains to fit your laser environment.

  • Curtain materials withstand direct and scattered laser light generated by Class 3B or 4 lasers as specified in ANSI: Z 136.1 – Section 4.4.2.5.  and conform Din 60825. The material is flame-resistant, passing requirements in accordance with NFPA Standard Number 701.
  • The laser safety Welding curtain is suitable for delimiting laser welding areas to block direct scattered light from the welding laser. Standard widths to 1,5 m with heights of 2,0m 2,2m 2,70 m.
  • Can also be manufactured to exact dimensions.
    Several curtains can be firmly connected with Velcro or zipper so that, for example, a rectangular work area can be delimited.
  • Suitable rail systems for mounting the curtain directly to the ceiling or suspended from a high ceiling with vertical rods are optionally available.

Laser Curtain inter connections - Laser Curtain Access Points - Standard Style: Velcro®

There are many elements to think about when designing curtains for a laser area, but one that often gets overlooked is how to gain access into the laser area. We offer standard laser curtain access point styles, ranging from simple curtain overlaps to secured access-controlled doorways, and we will customize to meet your requirements.

Laser Curtain Access Points - Standard Style: Velcro®

Velcro® brand hook and loop fasteners, 1-inch width, may be used to create an access point in a laser barrier curtain. Curtain panels may be joined together with hook and loop along their entire height, or the fasteners may be used to connect a curtain to a wall or other fixed point.



Other interconnections are available on demand: double bypass, zipper, magnetic zipper, grommets, magnets,…

PhotonSafe Laser Protection Pro curtain mobile on wheels

Flexible and fast corner construction

Our Laser welding curtains Pro come in various sizes and configurations to suit different work areas and applications. They can be hung from ceiling tracks or mounted on frames to create a protective barrier around the laser welding station.
Our laser welding panels can be daisy-chained together on wheels enabling you to move the panels around as you need. The panels are connected by one foot and one and half foot dividers enabling you to create corners and folds as needed.
The panel systems can act in a very similar way as a shower curtain with the additive feature of being mobile

When two adjacent Laser protection pro curtains on frame are installed in line and the third under 90°, the laser protection screen is arranged in an L shape, the installation position of the caster assembly can be adjusted at the bottom of one set of the protection screen (according to the red arrow in the lower right figure) direction adjustment), so as to adjust the relative position of two adjacent sets of protective screens, to fit the site space.

Types of laser Protection Welding curtains

PhotonSafe Laser Protective Curtains according to EN 60825-4

Laser Welding Protection curtain without supporting device

Curtain ready to be used

Laser Protective Curtains according to EN 60825-4 (Laser Welding Protection)

==>NOT according EN11254 (Laser Labo Protection at max 100 Watt)

Protection Level: 543 W/cm2 - 1070nm - ∅5 mm - T= 100 sec

PhotonSafe Laser Protection welding curtains have a standard width of 150 cm, are provided with:

  • seam all around
  • Thickness 0,40 mm.
  • All standard welding curtains are supplied incl.  steel suspension rings.
  • Approved in accordance with ISO EN 25980 and EN 60825-4
  • Standard width 150 cm
  • Fully seamed all-around
  • 7 eyelets on one side measuring 150cm
  • Snap-fasteners on both sides
  • Including 7 free steel suspension rings
  • Standard Heights 208 - 228
  • Other heights on demand
  • including frame with wheels possible
  • Safety window can optional be installed

The welding curtains are for visual protection use and although they are flame retardant, they are not suitable for use as a welding blanket and/or as protection against welding sparks.  The material is not intended to replace a welding window but to be used to protect bystanders from harmful rays in the welding area.

Vrijstaand laser Lasgordijn 150 cm breed standaard

PhotonSafe® vrijstaande laserlasstandaardserie

Laserbeschermingsgordijnen volgens EN 60825-4 (laserlasbescherming)

==>==>NIET volgens EN11254 (Laser Labo Protection bij max 100 Watt)

PhotonSafe Laser Protection lasgordijnen hebben een standaard breedte van 150 cm, zijn voorzien van:

  • naad rondom
  • Dikte 0,40 mm.
  • Alle standaard lasgordijnen worden geleverd incl. stalen ophangringen.
  • Goedgekeurd volgens ISO EN 25980 en EN 60825-4
  • Standaardbreedte 150 cm
  • Volledig rondom genaaid
  • 7 oogjes aan één zijde van 150 cm
  • Drukknopen aan beide zijden
  • Inclusief 7 gratis stalen ophangringen
  • Standaardhoogten 213,5 - 263,5 - 283,5cm
  • Andere hoogtes op aanvraag
  • inclusief frame met wielen mogelijk
  • Veiligheidsraam kan optioneel worden geïnstalleerd

De lasgordijnen zijn bedoeld voor visuele bescherming en zijn weliswaar vlamvertragend, maar niet geschikt om te gebruiken als lasdeken en/of als bescherming tegen lasvonken. Het materiaal is niet bedoeld ter vervanging van een lasraam, maar om omstanders te beschermen tegen schadelijke stralen in de lasruimte.


Vrijhangend laser Lasgordijn 150 cm breed standaard

Free Hanging Welding curtain 150 cm wide standard (copy 2)

PhotonSafe® freehanging Standard Series

Laserbeschermingsgordijnen volgens EN 60825-4 (laserlasbescherming)

==>==>NIET volgens EN11254 (Laser Labo Protection bij max 100 Watt

PhotonSafe Laser Protection lasgordijnen hebben een standaard breedte van 150 cm, zijn voorzien van:

  • naad rondom
  • Dikte 0,40 mm.
  • Alle standaard lasgordijnen worden geleverd incl. stalen ophangringen.
  • Goedgekeurd volgens ISO EN 25980 en EN 60825-4
  • Standaardbreedte 150 cm
  • Volledig rondom genaaid
  • 7 oogjes aan één zijde van 150 cm
  • Drukknopen aan beide zijden
  • Inclusief 7 gratis stalen ophangringen
  • Standaardhoogten 200 - 250 - 270 cm
  • Andere hoogtes op aanvraag
  • inclusief trackkit mogelijk
  • Veiligheidsraam kan optioneel worden geïnstalleerd

De lasgordijnen zijn bedoeld voor visuele bescherming en zijn weliswaar vlamvertragend, maar niet geschikt om te gebruiken als lasdeken en/of als bescherming tegen lasvonken. Het materiaal is niet bedoeld ter vervanging van een lasraam, maar om omstanders te beschermen tegen schadelijke stralen in de lasruimte.
PhotonSafe® vrijhangende standaardserie

Transportable foldable Laser Safety curtains for mobile or service applications

Special foldable Laser Safety curtains for mobile service applications - portable in a carry bag

Portable Laser Barriers: Photonsafe Service portable compact curtain laser barriers are designed with mobility in mind. All the features you expect in a full size barrier adapted into a barrier that when dismantled fits into a bag and can easily be carried.

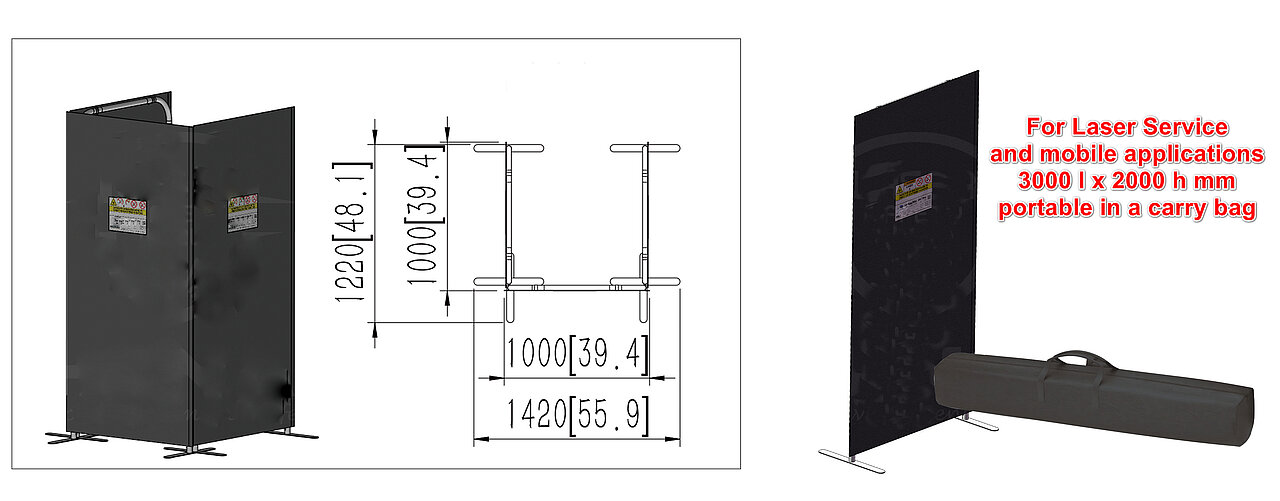

Our Laser Protection Pro curtain 3020 tri-fold mobile laser shield consists of three sets of aluminum frames and three pieces of Laser protection Pro Curtain. The Pro Laser Curtain is assembled, paying attention to the installation of castors and hinges between adjacent frames.

Tri-fold Laser Defending curtains, trifold laser protective screen is composed of three modules, which can be folded and moved, and can be enclosed in L-shape, U-shape, or I-shape. It can be folded and stored, especially suitable for laser experiments, laser machine display, maintenance, and other occasions.. This trifold Laser protection screen can be fitted with a laser protection window for observing the laser from outside the protected area.

3000 mm x 2000 mm

Portable

Special for Service people who want to protect the people around during a service intervention.

Following EN60285 Standard

Portable laser screen, consisting of 3 modules of 1 x 2 m (W x H)
overall size appr. 3 x 2 m
High power resistant curtain black carbon, with aluminium frame and carrying bag

Suitable till 6kW laser



Lasermach foldable mobile welding screen on wheels

Foldable movable laser welding curtain 450 x 200 cm with 3 elements foldable

Tri-fold Laser Defending curtains, trifold laser protective screen is composed of three modules, which can be folded and moved, and can be enclosed in L-shape, U-shape, or I-shape. It can be folded from 3 to 1 panel and stored.

Especially suitable for laser welding on bigger parts, laser welding experiments, laser machine display, maintenance, and other occasions.. This trifold Laser protection screen can be fitted with a laser protection window for observing the laser from outside the protected area.

4500mm x 2000mm

other sizes on demand

Screens for laser working places - Safety requirements and testing

Safety of laser products - Equipment classification and requirements

EN 12254:2010

Laser Standard NOT suitable for laser welding - only for Labo use with laser power of maximum 100 Watt

This standard specifies functional requirements and a product labelling applicable to temporary and permanent passive guards (in the following called screens) for protection against laser radiation. This standard includes test methods for testing functional performance and the specification of the user documentation to be supplied with the product.

The screens are designed to protect the user from:

  • unintentional exposure to direct and/or diffuse laser radiation;
  • a time limited exposure to laser radiation, based on the functional requirements determined by risk assessment.

This standard applies to supervised screens for installations in working places at which laser radiation up to a maximum mean power of 100 W or single pulse energy of 30 J occurs within the spectral range between 180 nm (0,18 µm) and 106 nm (1 000 µm).

This standard applies to the protection against laser radiation only. This standard does not apply to other hazards including hazards from secondary radiation that can arise during, for example, material processing.

This standard gives guidance on how to select such screens.

Laser enclosures and housings that are supplied as part of the laser product or are supplied to be fitted to a laser system to form a laser product (according to EN 60825-1) are not considered to be within the scope of the standard.

IEC 60825-4:2022 - BS EN IEC 60825-4 - Safety of laser products - Part 4: Laser guards

The only Acceptable Standard for Laser Welding Protection

IEC 60825-4:2022 deals with basic issues concerning laser guards, including human access, interlocking and labelling, and gives general guidance on the design of protective housings and enclosures for high-power lasers. Laser guards may also comply with standards for laser protective eye-wear, but such compliance is not necessarily sufficient to satisfy the requirements of this document.

This part of IEC 60825 specifies the requirements for laser guards, permanent and temporary (for example for service), that enclose the process zone of a laser processing machine, and specifications for proprietary laser guards.

This applies to all component parts of a guard including clear (visibly transmitting) screens and viewing windows, panels, laser curtains and walls. In addition, this document indicates

  •  how to assess and specify the protective properties of a laser guard, and
  •  how to select a laser guard.

Bezoek direct onze webshop - Bestel uw laserlasveiligheidsgordijn online

Klik op de link hierboven of op het icoon om onze webshop te bezoeken

Laserveiligheidsgordijn Lasgordijn

Laserlasgordijn: PhotonSafe Pro-serie

Het laserveiligheidslasgordijn is geschikt voor het afbakenen van laserlasgebieden om direct verstrooid licht van de laslaser te blokkeren. Standaardbreedtes vanaf 1,5 m tot hoogtes tot 2,70 m kunnen op exacte afmetingen worden vervaardigd. Meerdere gordijnen kunnen stevig met elkaar verbonden worden met klittenband of ritssluiting zodat bijvoorbeeld een rechthoekige werkruimte afgebakend kan worden. Optioneel zijn geschikte railsystemen verkrijgbaar om het gordijn direct aan het plafond te bevestigen of met verticale stangen aan een hoog plafond op te hangen.

  • CE-gecertificeerd volgens de norm EN 60825-4 (Veiligheid van laserapparatuur - Deel 4: Laserbeschermingswanden)
  • Vlamvertragend (M2-beschermingsniveau volgens NFP 92-503)
  • Materiaal: Beide zijden zwart
  • Dikte 1,4 mm
  • Gewicht gordijn: 1,7 kg/m²
  • Oppervlak gemakkelijk schoon te maken
  • Oogjes (diameter 10 mm, standaardafstand 120 mm) en metalen haken aan de bovenrand
  • Bijpassende gordijnrail verkrijgbaar
  • Bevestiging van extra schermen mogelijk (om de opening tussen de rail en de bovenrand van het gordijn af te dekken)
  • Bevestiging van klittenband of ritssluiting mogelijk
  • Verbinding met interlocksysteem mogelijk (optioneel)

Beschermingswaarden volgens EN 60825-4

Houd er rekening mee dat het gordijnmateriaal alleen beschermt tegen strooilicht van de laser bij gebruik van een handlaserlasapparaat zoals bedoeld. Het is noodzakelijk dat de laserbeschermingsfunctionaris van uw bedrijf in het kader van een risicobeoordeling bevestigt dat de maximaal toegestane stralingsniveaus van het gordijn niet worden bereikt of overschreden. Strooistraling, die naar boven, naar beneden of opzij kan ontsnappen, moet door de laserveiligheidsfunctionaris worden beoordeeld op de maximaal toegestane stralingsniveaus, afhankelijk van de situatie ter plaatse. Er kunnen aanvullende laserbeschermingsmaatregelen nodig zijn.

Bestraald oppervlak



PEL (T2) 100 s 1070 nm

∅ 5 mm

 543 W/cm²


* PEL = Toegestane blootstellingslimieten

Laserbarrièregordijnen

Laserbarrièregordijnen zijn de ideale oplossing voor de bescherming van gevoelige gebieden. De dikke materialen zijn geschikt voor vrijwel elke indeling die u nodig heeft voor uw toepassing. De lasergordijnen kunnen ook zijwaarts op ons industriële gordijnrailsysteem rollen of statisch worden gemonteerd. Deze lichtgewicht lasergordijnen zijn gemakkelijk te verplaatsen en kunnen worden opgevouwen tot een kleine ruimte wanneer ze worden teruggetrokken. Toepassingen zijn onder meer draagbare laserbarrières, verduisteringslasergordijnen en lasergordijnmateriaal. Nu verkrijgbaar zijn klasse 4 lasergordijnen.



Bescherming bij laserlassen

Ons assortiment beschermingshulpmiddelen tegen laserlasstraling

Laserlascabines

PhotonSafe Laser Lasbeschermingskasteel

Direct to our Online Webshop

Laserraamfolie - LASERRAAMFILM

Laserbeschermingsfolie om op standaardramen te plaatsen voor volledige oogbescherming

Het team van Lasermach Safety is er trots op een hoogwaardige laserglasfolie te kunnen leveren. Onze laserbeschermende verwijderbare raamfolies kunnen worden gebruikt op de ramen van uw laserlasruimtes om externe personen te beschermen tegen de schittering van de laslasers.

Direct to our Online Webshop

Laserlasbescherming gelaatsschermen - Laserveiligheidsgelaatsschermen

Beschermende gelaatsschermen voor laserlassen - Laserveiligheids- en beschermingsgelaatsschermmasker.

Direct to our Online Webshop

Veiligheidsborden voor laserlassen - Veiligheidssignalisatie voor lasers

Laserveiligheidselektronica - Laserveiligheidscontroles

Laser safety signage is of crucial importance in all environments where the use of lasers is present.
